Features

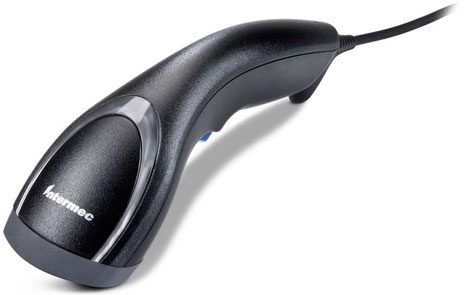

The Intermec SG10T is a simple,affordable and reliable handheld bar code reader designed for small to mediumsized businesses. The SG10T provides:

• 1D bar code reading at an affordable price.
• Easy connection to the USB and Key Board Wedge interfaces.
• Solid state linear imaging technology delivering reliability for years to come.
• Backed by Intermec’s comprehensive warranty to ensure your investment is protected.

ProductOverview

The Right Fit for Your ScanningNeeds
Using barcodes and scanners to track inventory and assets has been proven toincrease accuracy and efficiency for businesses. The Intermec SG10T handheldbar code reader gives businesses an easy, affordable, and reliable way tocapture these benefits in their day-to-day operations. The SG10T reads allcommon 1D bar codes with ease. No complicated set up, no accessories requiredto complete the solution and no cordless connections to fuss with. Thisstraightforward approach enables the SG10T to be the best and only choice whenall you need to do is read a 1D bar code.

Easy to Use, Straight Out of the Box
The SG10T is so simple it comes complete with everything needed to startscanning 1D codes. Just plug it in and start scanning. Whether scanningtraditional UPC/ EAN or GS1 databar symbols, the SG10T is ready for thechallenge. Counter top scanning needs at retail POS, library desks, banks,medical, insurance, law firms and government offices can be up and running withno set up or training necessary. The intuitive point and shoot triggerergonomics will make quick work of all 1D bar code reading applications. TheSG10T is also compatible with Intermec’s exclusive EasySet™ PC programmingtool. Just a few short clicks and the Windows-based utility will produce allthe programming bar codes necessary for any custom application.

Performance & Reliability
The SG10T was developed with reliability in mind; it uses solid state designfor increased dependability. With Intermec’s legacy of innovation and ruggeddesign, the SG10T is reliable for the task at hand, backed with a 3-yearwarranty. And the SG10T’s affordable price doesn’t mean you have to compromisein style or performance. Leading performance in a stylish point and shoot formfactor make the SG10T the bar code reader of choice for many entry levelcounter top reading needs. The SG10T has all you need; reliability and ease ofuse at an affordable price.

SG10TGeneral Purpose Linear Imager

PhysicalCharacteristics

Length: 16.4 cm (6.46”)
Width: 6.7 cm (2.64”)
Height: 5.4 cm (2.13”)
Weight: 105 g (.23 lbs) (without cable)

Environment

Environmental Protection: IP30 minimum
Operating Temperature: 0°C to 40°C ( 32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: Functional at 4 days, 95% Rh @ 45°C (113°F), Storage at 60°C(140°F)
Shock: Shock: 2000 Grams, 0.7 ms, half sinus, 3 axes
Drop Survival: 26 drops onto concrete from 1m (39.37”) height
Vibration: random vibration 8Grms, from 10Hz to 500Hz, 2 hour/axis, 3axes (SAE J1399 Class 3)
Ambient Light: Works in office lighting conditions up to 50,000 lux

Power

Voltage: 5 vdc, external power supply not required
Standby Current: <110mA
Operating Current: < 200mA

ScanningPerformance

Resolution: 0.125mm/5mil on code 39
Light Source: Red LED, 630 nm (aiming line)
Scan Rate: Bi-directional linear imager/ 130 scans per second
Pitch: 40°
Skew: ±20°
