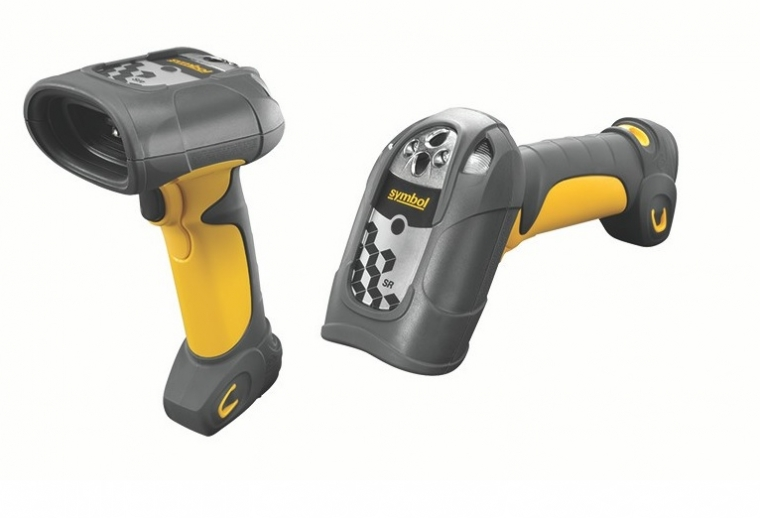

With Motorola’s maximum rugged specifications, the DS3500-ER Series of full-range scanners can handle whatever comes its way. The DS3500-ER Series allows you to scan different types of bar codes across a wide range of distances – from near contact to as far as 30 feet away. Workers can also hold the trigger down to continuously scan items. It doesn’t matter how well lit an area is – the DS3500-ER Series can read bar codes in darkness or in bright sunlight. Indoors and outdoors, you can drop it on concrete, cover it in dust or grease and continuously obtain the same reliable results.
Basic
Barcode Dimension: 2D
Brand Name: Zebra
Colour: Yellow
Connectivity Technology: Cable
Host Interface: USB
Image Sensor: Imager
Light Source: LED
Product Family: DS3500-ER
Product Type: Handheld Barcode Scanner
Scan Pattern: Omni-directional
Camera
Image Sensor: Imager
Display & Graphics
Image Sensor: Imager
General Information
Brand Name: Zebra
Manufacturer Part Number: DS3508-ER20005R
Manufacturer Website Address: http://www.zebra.com/ap/en.html
Manufacturer: Zebra Technologies Corporation
Product Model: DS3508-ER
Product Name: DS3508-ER Handheld Bar Code Reader
Product Series: DS3500-ER
Product Type: Handheld Barcode Scanner
Interfaces/Ports
Host Interface: USB
Media & Performance
Connectivity Technology: Cable
Miscellaneous
Green Compliance Certificate/Authority: RoHS
Green Compliant: Yes
Network & Communication
Connectivity Technology: Cable
Physical Characteristics
Colour: Yellow
Depth: 74.3 mm
Height: 186.5 mm
Weight (Approximate): 363 g
Width: 122.5 mm
Product Information
Light Source: LED
Width: 122.5 mm
Scanner
Image Sensor: Imager
Technical Information
Barcode Dimension: 2D
Barcode Symbology Supported:

1D Codes:

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
  • GS1 DataBar (omni-directional, truncated, Stacked, Stacked omni-directional, limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)

PDF417 (and Variants):

  • PDF417 (Standard, Macro)
  • microPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2D Codes:

  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)

Postal:

  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japan Postal
  • Australian Postal
  • Dutch Postal
  • 4 State Postal

IUID Support:

  • Supports iUiD parsing – the ability to read and separate IUID felds per application requirements

Connectivity Technology: Cable
Depth of Field: 203 mm – 1067 mm@0.25 mm – Code 39
Host Interface: USB
Image Sensor: Imager
Light Source: LED
Scan Pattern: Omni-directional
Scanning Distance: 9.14 m
Warranty
Limited Warranty: 3 Year
